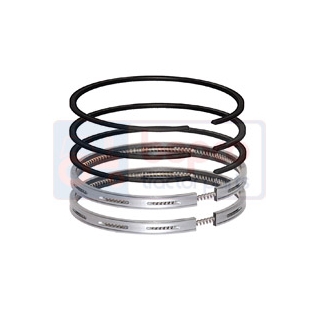

CM30/34-12T

[Telefon: 0748 28 58 90]
CM30/34-12T
IN STOC FURNIZOR - Pretul afisat pentru acest produs este ultimul pret de vanzare din trecut ( VECHI ). In prezent pretul acestui produs poate sa difere: deloc, putin sau foarte mult din cauze multiple: cost mai ridicat de productie, transport, curs valutar, etc, Pentru un pret exact al produselor care nu sunt in stoc intern, va rugam sa contactati agentii nostri
30/34-12T, 41158025, 41158026, 41158026T, 41158041, 745746M91, 745747M91, 745760M91, 745760Z91, 81583, 83388, 86785, 92463, 92464,
/ Massey Ferguson /Massey Ferguson
Tractor
Serie: 100
168, (Rope seal ), 168F, (Rope seal ), 168S, (Rope seal ), 174, (Early blocks 103.19mm bore ? ), 174C, (Later blocks 104.20mm bore ? ), 174F, (Later blocks 104.20mm bore ? ), 174S, (Early blocks 103.19mm bore ? ), 174V, (Later blocks 104.20mm bore ? ), 175, (Lip seal ), 175S, (Lip seal ), 184, (Rope seal ), 184F, (Lip seal ), 184S, (Lip seal ),
Serie: 1000
1014, (Std ring set ), 1024, (5 ring piston ), 1100, (Std ring set ), 1104, (Std ring set ), 1114, (5 ring piston ), 1130, 1200, (5 ring piston ),
Serie: 1200
1250, (5 ring piston ),
Serie: 200
255 (USA), (Early blocks 103.19mm bore ? ), 265, (Later blocks 104.20mm bore ? ), 273, (Later blocks 104.20mm bore ? ), 274, (Early blocks 103.19mm bore ? ), 274C, (Early blocks 103.19mm bore ? ), 274CF, (Later blocks 104.20mm bore ? ), 274S, (Later blocks 104.20mm bore ? , Liner without flame ring ), 274SK, (Later blocks 104.20mm bore ? ), 275, (Early blocks 103.19mm bore ? ), 275E, (Later blocks 104.20mm bore ? , Liner without flame ring ), 283, (Later blocks 104.20mm bore ? , Liner without flame ring ), 284, (Later blocks 104.20mm bore ? ), 284S, (Later blocks 104.20mm bore ? ),
Serie: 200 (Brasil - South Africa)
265, (Later blocks 104.20mm bore ? ),
Serie: 2600
2620, (-> U653769H ), 2625, (5 ring piston ), 2640, (5 ring piston ), 2645, (5 ring piston ), 2675, (5 ring piston ),
Serie: 300
362, (Later blocks 104.20mm bore ? , Liner without flame ring ), 362N, (Early blocks 103.19mm bore ? , Liner with flame ring ), 365, (Later blocks 104.20mm bore ? , Liner without flame ring ), 367CF, (Later blocks 104.20mm bore ? , Liner without flame ring ), 372N, (Later blocks 104.20mm bore ? , Liner without flame ring ), 373, (Early blocks 103.19mm bore ? , Liner with flame ring ), 373LX, (Later blocks 104.20mm bore ? , Liner without flame ring ), 373S, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374AP, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374AP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 374AQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374F, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374FP, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374FP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 374FQ, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374GE, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374GE(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 374H, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374S, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374SP, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374SP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 374SQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 374V, (Early blocks 103.19mm bore ? , Liner with flame ring ), 374VQ, (Early blocks 103.19mm bore ? , Liner with flame ring ), 375, (Early blocks 103.19mm bore ? , Liner with flame ring ), 375E, (Later blocks 104.20mm bore ? , Liner without flame ring ), 376C, (Early blocks 103.19mm bore ? , Liner with flame ring ), 376CF, (Later blocks 104.20mm bore ? , Liner without flame ring ), 376XCF, (Later blocks 104.20mm bore ? , Liner without flame ring ), 377, (Early blocks 103.19mm bore ? , Liner with flame ring ), 383, (Later blocks 104.20mm bore ? , Liner without flame ring ), 383LX, (Later blocks 104.20mm bore ? , Liner without flame ring ), 383S, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384AP, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384AP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 384AQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384F, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384FP, (Early blocks 103.19mm bore ? , Liner with flame ring ), 384FP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 384FQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384GE, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384GE(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 384S, (Early blocks 103.19mm bore ? , Liner with flame ring ), 384SP, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384SP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 384SQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 384V, (Early blocks 103.19mm bore ? , Liner with flame ring ), 384VQ, (Later blocks 104.20mm bore ? , Liner without flame ring ), 387, (Early blocks 103.19mm bore ? , Liner with flame ring ), 399, (5 ring piston ),
Serie: 3000
3050, (Later blocks 104.20mm bore ? ), 3080, (5 ring piston ), 3090, (5 ring piston ),
Serie: 3200-3300
3220AP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 3220FP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 3220GE(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 3220SP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 3225AP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 3225FP(X), (Early blocks 103.19mm bore ? , Liner with flame ring ), 3225GE(X), (Later blocks 104.20mm bore ? , Liner without flame ring ), 3225SP(X), (Later blocks 104.20mm bore ? , Liner without flame ring ),
Serie: 3600
3610, (5 ring piston ),
Serie: 500
565, (Later blocks 104.20mm bore ? ), 575, (Early blocks 103.19mm bore ? ),
Serie: 600
675, (Later blocks 104.20mm bore ? ), 699, (5 ring piston ),
Industrial tractor
Serie:
30D, (Early blocks 103.19mm bore ? , Liner with flame ring ), 50, (Later blocks 104.20mm bore ? , Liner without flame ring ), 50B, (Later blocks 104.20mm bore ? , Liner without flame ring ), 50B MKII, (Later blocks 104.20mm bore ? , Liner without flame ring ), 50C, (Later blocks 104.20mm bore ? , Liner without flame ring ), 50D, (Early blocks 103.19mm bore ? , Liner with flame ring ), 50E, (Early blocks 103.19mm bore ? , Liner with flame ring ), 50H, (Later blocks 104.20mm bore ? , Liner without flame ring ), 50H-S, (Early blocks 103.19mm bore ? , Liner with flame ring ), 50H-T, (Early blocks 103.19mm bore ? , Liner with flame ring ), 60, (Later blocks 104.20mm bore ? , Liner without flame ring ),
Combine-harvester
Serie:
10 Plot, (Later blocks 104.20mm bore ? , Liner without flame ring ), 16, (Early blocks 103.19mm bore ? , Liner with flame ring ), 16 Plot, (Later blocks 104.20mm bore ? , Liner without flame ring ), 187, (Later blocks 104.20mm bore ? , Liner without flame ring ), 206, (Early blocks 103.19mm bore ? , Liner with flame ring ), 24, (5 ring piston ), 240, (Early blocks 103.19mm bore ? , Liner with flame ring ), 307, (Early blocks 103.19mm bore ? , Liner with flame ring ), 330, (Later blocks 104.20mm bore ? , Liner without flame ring ), 500, (5 ring piston ), 507, (5 ring piston ), 510, (5 ring piston ), 515, (5 ring piston ), 520, (5 ring piston ), 525, (5 ring piston ), 530, (5 ring piston ), 530S, (5 ring piston ), 535, (5 ring piston ), 8 Plot, (Early blocks 103.19mm bore ? , Liner with flame ring ), 800, (5 ring piston ), 805, (5 ring piston ), 810, (5 ring piston ), 815, (5 ring piston ), 99, (Later blocks 104.20mm bore ? , Liner without flame ring ),

Pentru identificarea corecta a unui piston sau set de segmenti avem nevoie de cateva indicii:

Agentul de vanzari va poate cere unele informatii din urmatoarele:
Iata care sunt acestea si cum pot fi identificate.

Intoarceti pistonul invers si masurati diametrul exterior

Indiferent ca pistonul este cu "aripi" sau drept ca, cel din imagine, masurati intotdeauna in partea de jos a acestuia. Aceasta cota este implicit interiorul cilindrului si diametrul segmentilor

REMARCA: Pastrand pozitia si rotind pistonul puteti descoperi o eroare de 0.01 / 0.3 mm. Acesta este un lucru absolut normal de fabricatie.

Diametrul boltului
Pentru o mai buna precizie puteti masura diametrul exterior al boltului.
Distanta din centrul imaginar al boltului pana la camera de ardere:
Incercati o aranjare a instrumentului de masurat asemanatoare cu cea din imagine
<-- Grosime unui segment. ( foto stanga )
Nu incercarti sa masurati segmentii din exterior:
- Riscati sa ii distrugeti !
- Diametrul exterior al acestora este intotdeauna identic cu exteriorul pistonului din prima figura

 Pozitionati segmentul asemenea imaginii:
Doar asa va puteti da seama cu ochiul liber daca segmentul este conic ( trapez ) sau nu.

Piesa alternativa Piesa alternativa

Piesele au stoc real. Imaginile produselor au caracter informativ. Codurile sunt doar pentru referinta
