30/33-57, 747050M91, U5LP0009,
Landini
Tractor
Serie: 30
8530F, 8530L, 8830,
Serie: 50
8550,
Serie: 60
8560F, 8560L, 8860HC,
Serie: 60 NG
8860,
Serie: 70
8870, 88CV,
Serie: 80
8880, 8880HC,
Serie: Advantage
85F, 85FP, 85GE, 85GT, 85GTP, 85L, 85LP,
Serie: Blizzard
Blizzard 85,
Serie: Cingolati
C7830, C8860,
Serie: Trekker
C85, CF85,
Massey Ferguson
Tractor
Serie: 100
178 (Without flame ring ), 185 (Without flame ring ), 188 (U839080J-> 3 ring piston ), 194 (Without flame ring ), 194C (Without flame ring ), 194F (U839080J-> 3 ring piston ), 194S (U839080J-> 3 ring piston ),
Serie: 200
285 (->U839080J 3 ring piston / With flame ring ), 290 (U839080J-> 3 ring piston ), 290E (Without flame ring ), 293 (Without flame ring ), 294 (U839080J-> 3 ring piston ), 294C (U839080J-> 3 ring piston ), 294S (Without flame ring ),
Serie: 300
382N (Without flame ring ), 390 (Without flame ring ), 390E (Without flame ring ), 393 (Without flame ring ), 393LX (Without flame ring ), 393S (U839080J-> 3 ring piston ), 394AP (Without flame ring ), 394AP(X) (Without flame ring ), 394AQ (Without flame ring ), 394C (Without flame ring ), 394F (Without flame ring ), 394FP (Without flame ring ), 394FP(X) (Without flame ring ), 394FQ (Without flame ring ), 394GE (Without flame ring ), 394GE(X) (Without flame ring ), 394H (Without flame ring ), 394S (Without flame ring ), 394SP (Without flame ring ), 394SP(X) (Without flame ring ), 394SQ (Without flame ring ), 396C (Without flame ring ), 396CF (Without flame ring ), 397 (Without flame ring ),
Serie: 3000
3055 (Without flame ring ), 3060 (Without flame ring ),
Serie: 3200-3300
3235AP(X) (Without flame ring ), 3235FP(X) (Without flame ring ), 3235GE(X) (Without flame ring ), 3235SP(X) (Without flame ring ),
Serie: 500
590 (->U839080J 3 ring piston / With flame ring ),
Serie: 600
690 (->U839080J 3 ring piston / With flame ring ),
Industrial tractor
Serie:
20 (U839080J-> 3 ring piston ), 50EX (Without flame ring ), 50HX (Without flame ring ), 50HX-S (U839080J-> 3 ring piston ), 50HX-T (U839080J-> 3 ring piston ), 60H (U839080J-> 3 ring piston ), 60H-S (Without flame ring ), 60HX,
Combine-harvester
Serie:
430 (Without flame ring ), 440 (Without flame ring ), 487 (U839080J-> 3 ring piston ), 506 (Without flame ring ),
Motor:
A4.248 - Perkins
AT4.236 - Perkins
A4.236 - Perkins
Landini
Tractor
Serie: 30
8530F, 8530L, 8830,
Serie: 50
8550,
Serie: 60
8560F, 8560L, 8860HC,
Serie: 60 NG
8860,
Serie: 70
8870, 88CV,
Serie: 80
8880, 8880HC,
Serie: Advantage
85F, 85FP, 85GE, 85GT, 85GTP, 85L, 85LP,
Serie: Blizzard
Blizzard 85,
Serie: Cingolati
C7830, C8860,
Serie: Trekker
C85, CF85,
Massey Ferguson
Tractor
Serie: 100
178 (Without flame ring ), 185 (Without flame ring ), 188 (U839080J-> 3 ring piston ), 194 (Without flame ring ), 194C (Without flame ring ), 194F (U839080J-> 3 ring piston ), 194S (U839080J-> 3 ring piston ),
Serie: 200
285 (->U839080J 3 ring piston / With flame ring ), 290 (U839080J-> 3 ring piston ), 290E (Without flame ring ), 293 (Without flame ring ), 294 (U839080J-> 3 ring piston ), 294C (U839080J-> 3 ring piston ), 294S (Without flame ring ),
Serie: 300
382N (Without flame ring ), 390 (Without flame ring ), 390E (Without flame ring ), 393 (Without flame ring ), 393LX (Without flame ring ), 393S (U839080J-> 3 ring piston ), 394AP (Without flame ring ), 394AP(X) (Without flame ring ), 394AQ (Without flame ring ), 394C (Without flame ring ), 394F (Without flame ring ), 394FP (Without flame ring ), 394FP(X) (Without flame ring ), 394FQ (Without flame ring ), 394GE (Without flame ring ), 394GE(X) (Without flame ring ), 394H (Without flame ring ), 394S (Without flame ring ), 394SP (Without flame ring ), 394SP(X) (Without flame ring ), 394SQ (Without flame ring ), 396C (Without flame ring ), 396CF (Without flame ring ), 397 (Without flame ring ),
Serie: 3000
3055 (Without flame ring ), 3060 (Without flame ring ),
Serie: 3200-3300
3235AP(X) (Without flame ring ), 3235FP(X) (Without flame ring ), 3235GE(X) (Without flame ring ), 3235SP(X) (Without flame ring ),
Serie: 500
590 (->U839080J 3 ring piston / With flame ring ),
Serie: 600
690 (->U839080J 3 ring piston / With flame ring ),
Industrial tractor
Serie:
20 (U839080J-> 3 ring piston ), 50EX (Without flame ring ), 50HX (Without flame ring ), 50HX-S (U839080J-> 3 ring piston ), 50HX-T (U839080J-> 3 ring piston ), 60H (U839080J-> 3 ring piston ), 60H-S (Without flame ring ), 60HX,
Combine-harvester
Serie:
430 (Without flame ring ), 440 (Without flame ring ), 487 (U839080J-> 3 ring piston ), 506 (Without flame ring ),
Motor:
A4.248 - Perkins
AT4.236 - Perkins
A4.236 - Perkins
Pentru identificarea corecta a unui piston sau set de segmenti avem nevoie de cateva indicii:
Agentul de vanzari va poate cere unele informatii din urmatoarele:
Iata care sunt acestea si cum pot fi identificate.
 |

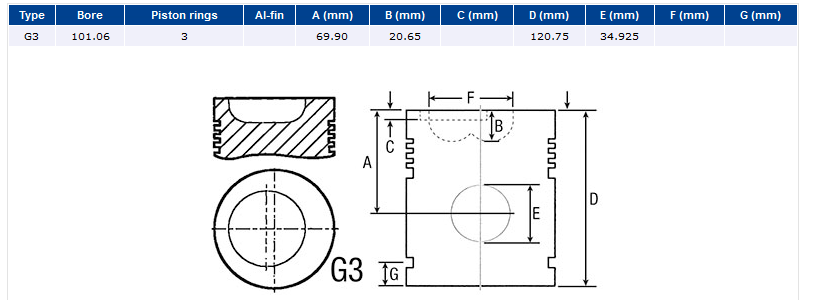

Intoarceti pistonul invers si masurati diametrul exterior Indiferent ca pistonul este cu "aripi" sau drept ca, cel din imagine, masurati intotdeauna in partea de jos a acestuia. Aceasta cota este implicit interiorul cilindrului si diametrul segmentilor REMARCA: Pastrand pozitia si rotind pistonul puteti descoperi o eroare de 0.01 / 0.3 mm. Acesta este un lucru absolut normal de fabricatie. |
 |
Diametrul boltului Pentru o mai buna precizie puteti masura diametrul exterior al boltului. |
| Distanta din centrul imaginar al boltului pana la camera de ardere: Incercati o aranjare a instrumentului de masurat asemanatoare cu cea din imagine |
 |
 |
<-- Grosime unui segment. ( foto stanga ) |
| Nu incercarti sa masurati segmentii din exterior: - Riscati sa ii distrugeti ! - Diametrul exterior al acestora este intotdeauna identic cu exteriorul pistonului din prima figura |
.jpg?1492117795396) |
Pozitionati segmentul asemenea imaginii:
Doar asa va puteti da seama cu ochiul liber daca segmentul este conic ( trapez ) sau nu.
Piesa alternativa
